2213362-4
Manufacturer:
TE Connectivity
Mfr.Part #:
2213362-4
Datasheet:
Description:

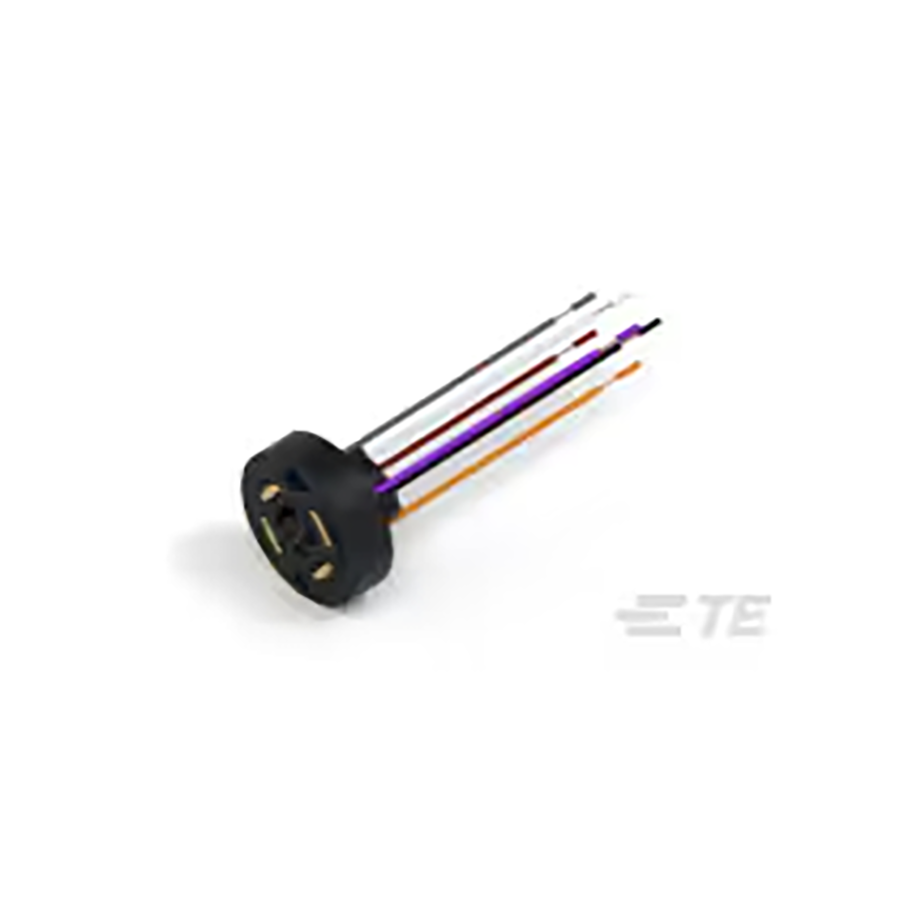

Lighting Connectors Through Hole Number of Positions:7 Receptacle
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 7 |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin, Gold |
| Contact Material(Contact Finish) | Gold, Nickel |
| Current Rating | 15 A |
| Max Current Rating | 15 A |
| Flammability Rating | UL94 V-0 |
| Operating Supply Voltage | 600 V |
| Color | Multiple, Individual |
| Gender | Receptacle |
| Number of Contacts | 7 |
| ELV | Compliant |
| Connector Type | Receptacle |
| Wire/Cable Gauge | 14 AWG |
| Number of Positions | 7 |
| Housing Material | PBT |
| Wire/Cable Type | Wire Lead |
| Connector System | Wire-to-Component |
| Contact Current Rating | 15 A |
| Cable Length | 305 mm |
| Housing Color | Black |
| Wire Gauge | 20 AWG to 14 AWG |
| Keyed | Yes |
| Plating Thickness | 760 nm |
| Make First / Break Last | Yes |
| Sealable | Yes |
Stock: 1342
Distributors
pcbx
pcbxUnit Price$6.96511
Ext.Price$6.96511
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.96511 | $6.96511 |
| 10 | $6.42052 | $64.20520 |
| 25 | $6.19126 | $154.78150 |
| 50 | $5.97018 | $298.50900 |
| 100 | $5.75710 | $575.71000 |
| 300 | $5.71033 | $1713.09900 |
| 500 | $5.66391 | $2831.95500 |
